Products > Gas Regulator > Oxygen, Acetylene, LPG regulator

Oxygen, Acetylene, LPG Regulator


item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread  outlet joint thread
no

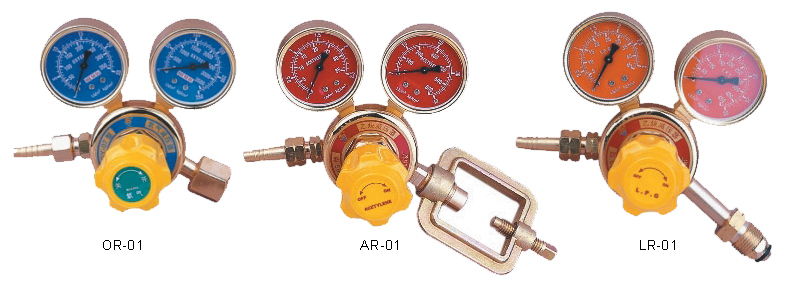

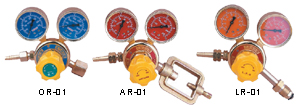

OR-01
 Oxygen
150
0.2-12.5
 40 G5/8"-14 G3/8"-19
AR-01
 Acetylene
30
0.1-1.5
 6 Framework G3/8"-19-left
LR-01
 Lpg
16
0.1-1.5
 5 W21.8-14-left G3/8"-19-left

item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

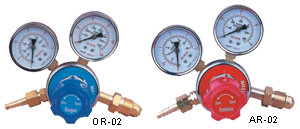

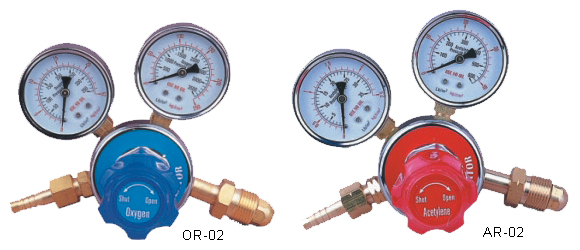

OR-02 Oxygen 150 0.2-12.5 40 G5/8"-14 M16x1.5
AR-02 Acetylene 30 0.1-1.5 6 G5/8"-14-left M16x1.5-left
LR-02 Lpg 16 0.1-1.5 5 G5/8"-14-left M16x1.5-left
OR-02A OXYGEN 150 0.2-12.5 40 G5/8"-14 M16x1.5
AR-02A Lpg 30 0.1-1.5 6 G5/8"-14-left M16x1.5-left

item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

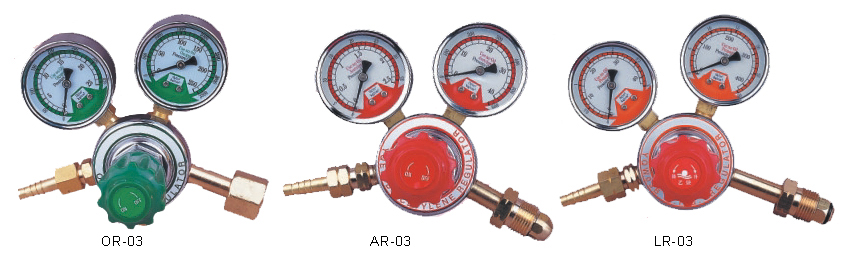

OR-03 Oxygen 150 0.2-12.5 40 G5/8"-14 M16x1.5
AR-03 Acetylene 30 0.1-1.5 6 G5/8"-14-left M16x1.5-left
LR-03 Lpg 16 0.1-1.5 5 G5/8"-14-left M16x1.5-left
OR-03A Oxygen 150 0.2-12.5 40 G5/8"-14 M16x1.5
AR-03A Acetylene 30 0.1-1.5 6 G5/8"-14-left M16x1.5-left

item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

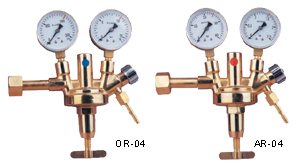

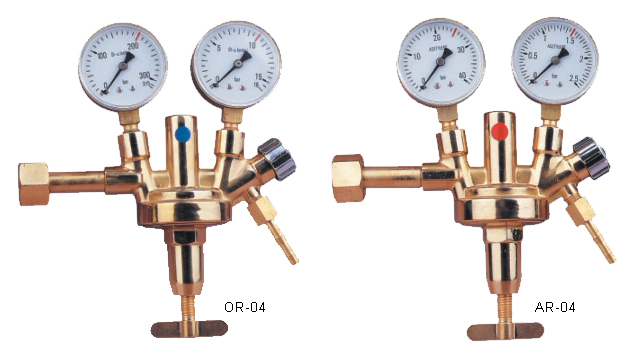

OR-04 Oxygen 200 0.2-10 30 w21.8-14 G1/4"-19
AR-04 Acetylene 25 0.1-1.5 5 w21.8-14 G1/4"-19-left
LR-04 Lpg 16 0.1-1.5 5 w21.8-14-left G1/4"-19-left

item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

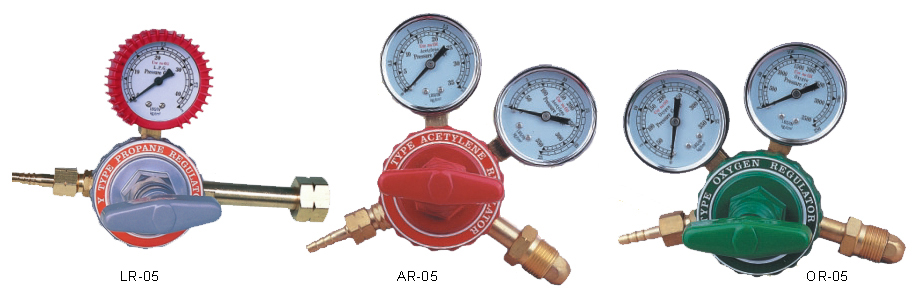

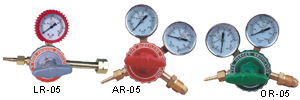

OR-05 Oxygen 150 0.2-12.5 40 G5/8"-14 M16x1.5
AR-05 Acetylene 16 0.1-1.25 6 G5/8"-14-left M16x1.5-left
LR-05 Lpg 16 0.1-1.5 5 G5/8"-14-left M16x1.5-left

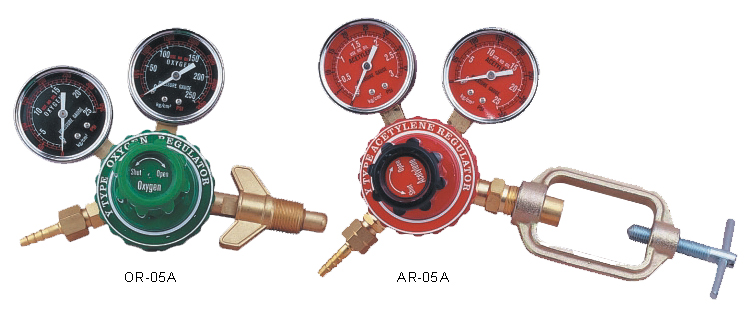

OR-05A Oxygen 150 0.2-12.5 40 G5/8"-14 M16x1.5
AR-05A Acetylene 16 0.1-1.5 6 Framework M16x1.5-left
LR-05 Lpg 16 0.1-1.5 5 G5/8"-14-left M16x1.5-left


item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

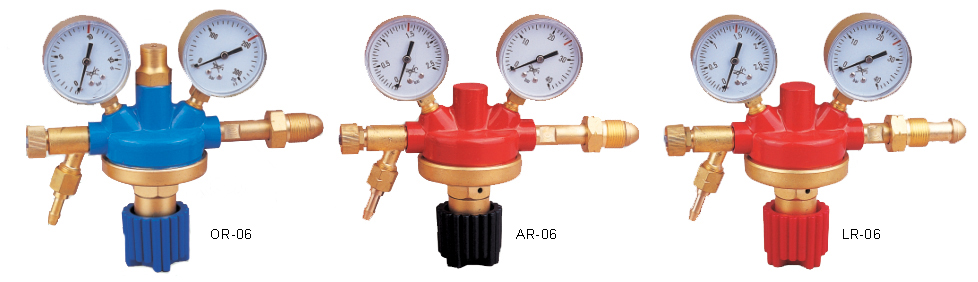

OR-06 Oxygen 200 0.2-10 40 G5/8"-14 G3/8"-19
AR-06 Acetylene 25 0.1-1.5 6 G5/8"-14-left G3/8"-19-left
LR-06 Lpg 25 0.1-1.5 5 G5/8"-14-left G3/8"-19-left


item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no
OR-07 Oxygen 200 0.2-10 40 G5/8"-14 G1/4"-19
AR-07 Acetylene 25 0.1-1.5 6 Framework G1/4"-19-left
LR-07 Lpg 25 0.1-1.5 5 W21.8-14-left G1/4"-19-left
TR-07 Ar/CO2 200 0.2-10   W21.8-14 G1/4"-19
ArR-07 Argon 200 1-25L/min   G5/8"-14 M12x1

item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

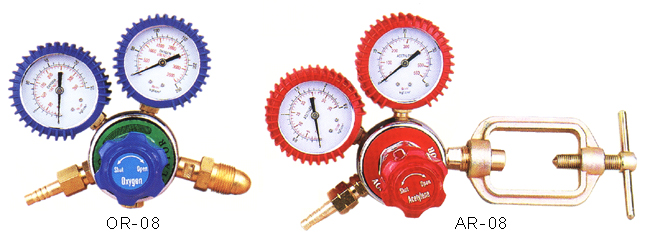

OR-08 Oxygen 150 0.2-12.5 40 G5/8"-14 M16x1.5
AR-08 Acetylene 16 0.1-1.5 6 Framework M16x1.5-left
LR-08 Lpg 16 0.1-1.5 5 G5/8"-14-left M16x1.5-left

item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

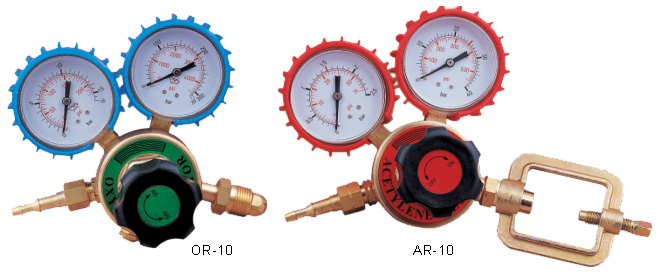

OR-10 Oxygen 200 0.2-10 50 G5/8"-14 G3/8"-19
AR-10 Acetylene 25 0.1-1.5 6 Framework G3/8"-19-left

item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

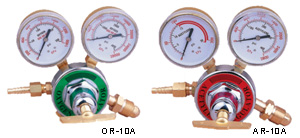

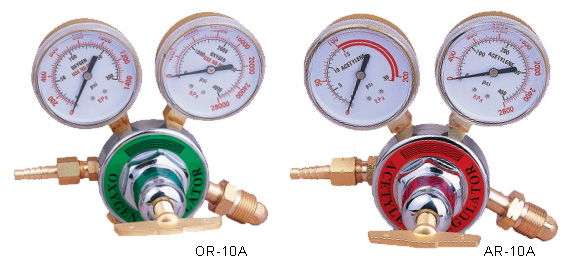

OR-10A Oxygen 200 0.2-10 50 G5/8"-14 G3/8"-19
AR-10A Acetylene 20 0.1-1 6 G5/8"-14-left G3/8"-19-left


item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

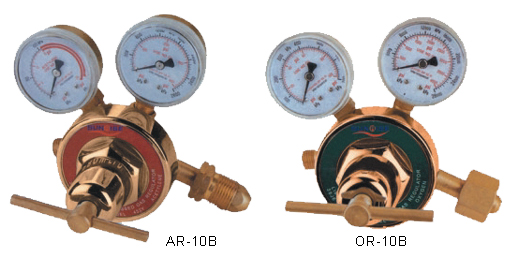

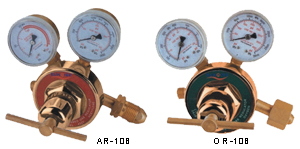

OR-10B Oxygen 200Kg/20000KPa 0.2-10 50 G5/8"-14 G3/8"-19
AR-10B Acetylene 20Kg/2000KPa 0.1-1 6 G5/8"-14-left G3/8"-19-left

item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no
OR-08 Oxygen 200 0.2-10 40 G5/8"-14 G3/8"-19
AR-08 Acetylene 30 0.1-1.25 6 Framework G3/8"-19-left
ArR-08 Ar/CO2 200 30L/min   G5/8"-14 G3/8"-19


item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

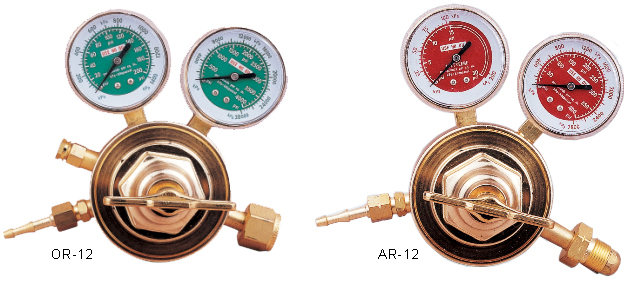

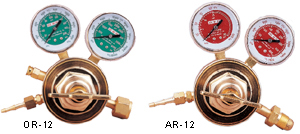

OR-12 Oxygen 200 0.2-10 50 .908"-14 American Standard 9/16"-18
AR-12 Acetylene 20 0.1-1 6 .880"-14t American Standard 9/16"-18-left


item applicable gas   input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

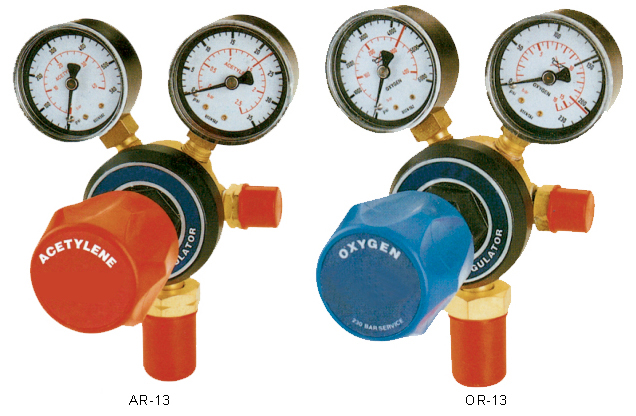

OR-13 Oxygen 300 0.2-10 40 G5/8"-14 G3/8"-19
AR-13 Acetylene 25 0.1-1.5 6 G5/8"-14-left G3/8"-19-left


item applicable gas   input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

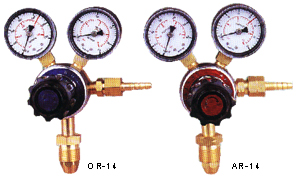

OR-14 Oxygen 300 0.2-10 40 G5/8"-14 G3/8"-19
AR-14 Acetylene 25 0.1-1.5 6 G5/8"-14-left G3/8"-19-left
LR-14 Lpg 25 0.1-1.5 5 G5/8"-14-left G3/8"-19-left


item applicable gas   input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

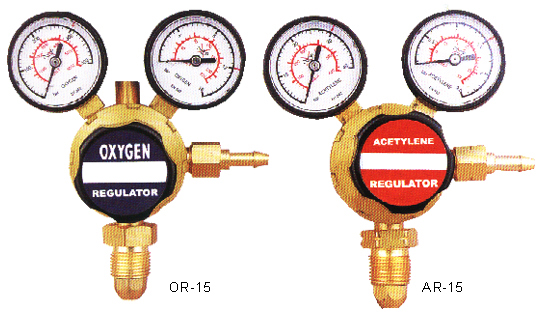

OR-15 Oxygen 300 0.2-10 40 G5/8"-14 G3/8"-19
AR-15 Acetylene 30 0.1-1.5 6 G5/8"-14-left G3/8"-19-left


item

applicable gas

 input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

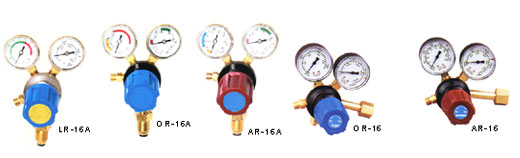

OR-16 Oxygen 200 0.2-10 40 G5/8"-14 American Standard 9/16"-18
AR-16 Acetylene 25 0.1-2 6 W21.8-14-left American Standard 9/16"-18
OR-16A Oxygen 200 0.2-10 40 G5/8"-14 American Standard 9/16"-18
AR-16A Acetylene 25 0.1-2 6 G5/8"-14-left American Standard 9/16"-18
LR-16A CO2 280   2-25L/min G5/8"-14 American Standard 9/16"-18


item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

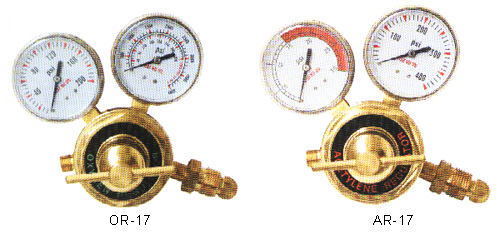

OR-17 Oxygen 200 0.2-10 50 .908"-14 American Standard 9/16"-18
AR-17 Acetylene 20 0.1-1 6 .880"-14t American Standard 9/16"-18-left

item applicable gas   input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no
OR-18 Oxygen 150 0.2-10 40 G5/8"-14 G3/8"-19
OR-38 Oxygen 150 0.2-10 40 G5/8"-14 G3/8"-19
AR-38 Acetylene 3025 0.1-1.5 6 G5/8"-14-left G3/8"-19-left

item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

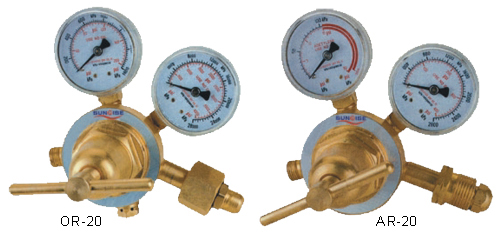

OR-20 Oxygen 200 0.2-10 50 .908"-14 American Standard 9/16"-18
AR-20 Acetylene 20 0.1-1 6 .880"-14t American Standard 9/16"-18-left


item applicable gas   input pressure (Kg/cm2)   working pressure (KPa) rate of flow (m3/h) inlet joint thread outlet joint thread
no

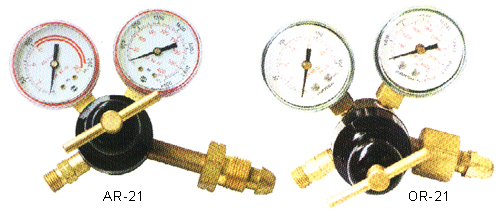

OR-21 Oxygen 200 100 20 CGA-540 G9/16"-18
AR-21 Acetylene 20 100 4 CGA-300 G9/16"-18-left
AR-21A Acetylene 20 100 4 CGA-300 G9/16"-18-left
LR-21 Lpg 20 100 4 CGA-510 G9/16"-18-left

item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no
OR-26 Oxygen 200 0.2-10 40 w21.8-14 G1/4"
AR-26 Acetylene 25 0.1-1.5 6 w21.8-14 G1/4"-left

item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no
OR-27 Oxygen 200 0.2-10 40 G5/8"-14 G3/8"-14
AR-27 Acetylene 25 0.1-1.5 6 G5/8"-14-left G3/8"-14-left

item applicable gas   input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no
OR-28 Oxygen 200 0.2-10 40 G5/8"-14 G3/8"-19
AR-28 Acetylene 25 0.1-1.5 6 G5/8"-14-left G3/8"-19-left
LR-28 Lpg 2515 0.1-3 5 G5/8"-14-left G3/8"-19-left

item applicable gas   input pressure (Kg/cm2)   working pressure (bar) rate of flow (m3/h) inlet joint thread outlet joint thread
no
OR-29 Oxygen 200 0.2-10 20 w21.8-14 G3/8"-19
AR-29 Acetylene 25 0.1-1.5 4 w21.8-14-left G3/8"-19-left
AR-31 Acetylene 25 0.1-1.5 4 G5/8"-14 G3/8"-19-left

item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread  outlet joint thread
no
OR-41
 Oxygen
150
0.2-12.5
 40 G5/8"-14 G3/8"-19
AR-41
 Acetylene
15
0.1-1.5
 6 Framework G3/8"-19-left
LR-41
 Lpg
15
0.1-1.5
 5 W21.8-14-left G3/8"-19-left

item applicable gas  input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread  outlet joint thread
no
OR-50
 Oxygen
200
0.2-12.5
 40 CGA-540 G3/8"-19
AR-50
 Acetylene
15
0.1-1.0
 6 CGA-300 G3/8"-19-left
LR-50
 Lpg
15
0.1-1.0
 5 CGA-510 G3/8"-19-left

item applicable gas   input pressure (Kg/cm2)   working pressure (Kg/cm2) rate of flow (m3/h) inlet joint thread outlet joint thread
no

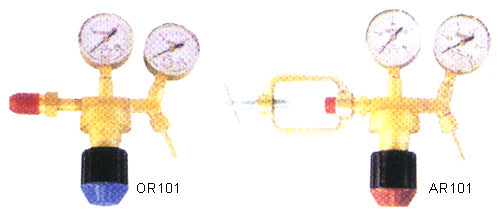

OR101 Oxygen 200 0.2-10 40 G5/8"-14 G1/4"-19
AR101 Acetylene 30 0.1-1.5 6 Framework G1/4"-19-left
